储能系统的安全.安全认证、试验和标准 - Safety of Energy Storage Systems - Safety certification, testing, and standards
Cell certified to IEC 62619 (UL 1642)
•Lithium ion cells used in NEC Energy Solutions energy storage products
Module certified to UL 1973
•Lithium ion modules used in NEC Energy Solutions energy storage products
•Modules from LG are designed and manufactured uniquely for NEC
BMS certified to IEC 61508 / SIL 2
•Functional Safety certified to Safety Integrity Level 2 as part of UL 1973
Rack certified to UL 1973
•Battery rack used in NEC Energy Solutions energy storage products
System certified to UL 9540
•Complete system certification: NEC Energy Solutions energy storage systems
Large-Scale Fire Test to UL9540A
•NEC completed test Dec 2018 showing effectiveness of clean agent + water suppression
Installation compliant with NFPA 855
•New standard governing safe energy storage installations, covering site-specific hazard considerations
Multiple layers of safety features designed into the energy storage platform • UL 9540, IEEE 1547, UL 1741SA, NFPA 855 compliance • Electrical fault protection compatible and coordinated with downstream protection • Fault current/voltage limited inverters with full electrical protection & isolation switches • AEROS® controls monitors and ensures operation within safe limits and can disconnect power if needed. • Automated fire suppression system on every GBS® battery container; additional safety feature options available • Compliant with NFPA 70/70E, UN38.3, IEEE 693, IEC62040-1 and other international safety standards • Compliant with UL1973 and IEC62619 • BMS provides functional safety, certified to IEC61508 Safety Integrity Level 2 (SIL 2) • Automated switches (contactors) disconnect rack from the system if necessary • High voltage fusing and ground fault protection • Compliant with UL1973, IEC62619, and UN38.3 • Module monitors every cell bank voltage and module temperatures • Integral module-level fuse • All cells certified to UL1973, UL1642 and IEC62619 lithium ion cell safety standards • All cells pass UN38.3 transportation safety test standards

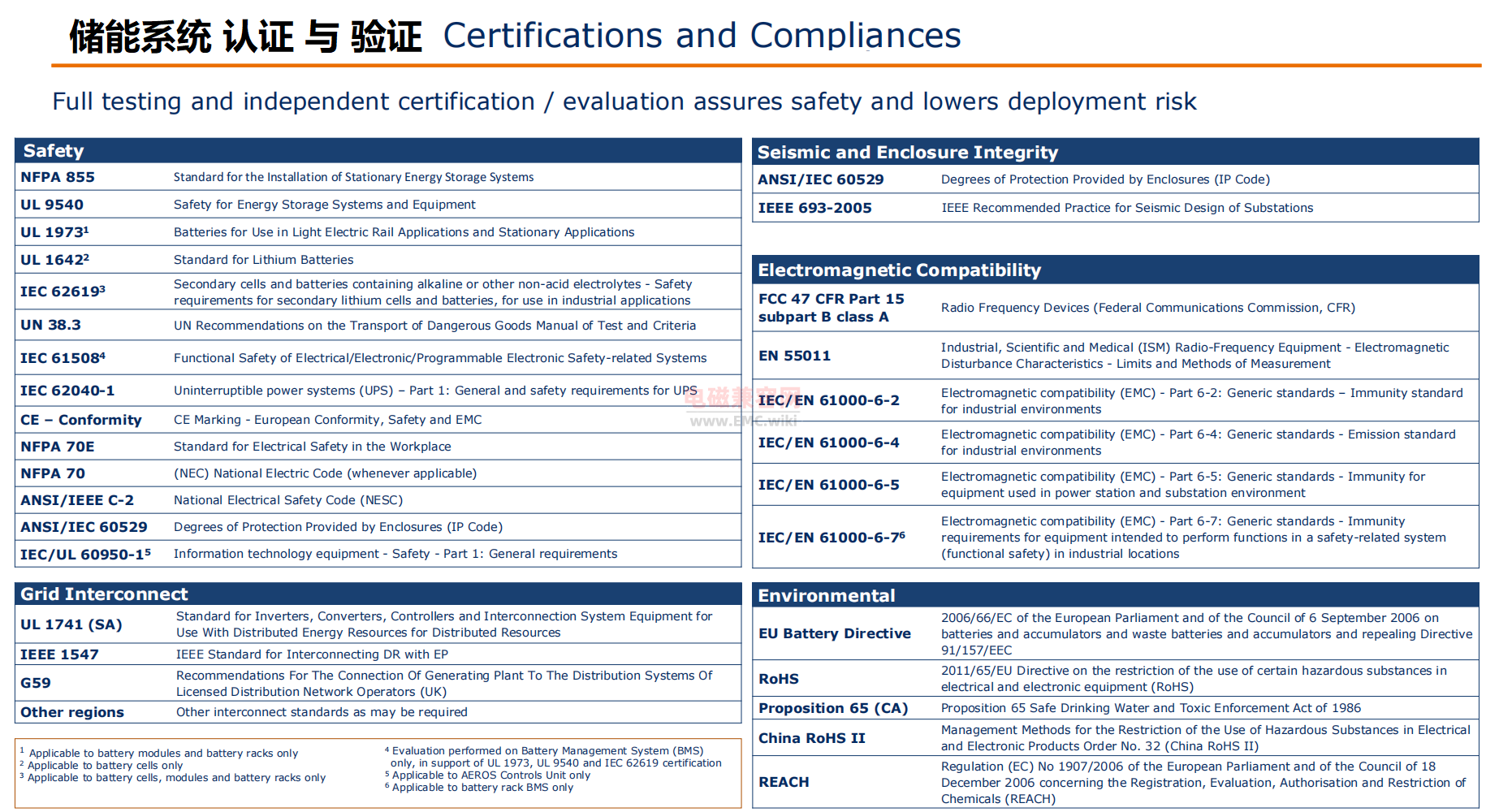

System Certifications and Compliances
Safety | | Standard for the Installation of Stationary Energy Storage Systems | | Safety for Energy Storage Systems and Equipment | | Batteries for Use in Light Electric Rail Applications and Stationary Applications | | Standard for Lithium Batteries | | Secondary cells and batteries containing alkaline or other non-acid electrolytes - Safety requirements for secondary lithium cells and batteries, for use in industrial applications | | UN Recommendations on the Transport of Dangerous Goods Manual of Test and Criteria | | Functional Safety of Electrical/Electronic/Programmable Electronic Safety-related Systems | | Uninterruptible power systems (UPS) – Part 1: General and safety requirements for UPS | | CE Marking - European Conformity, Safety and EMC | | Standard for Electrical Safety in the Workplace | | (NEC) National Electric Code (whenever applicable) | | National Electrical Safety Code (NESC) | | Degrees of Protection Provided by Enclosures (IP Code) | | Information technology equipment - Safety - Part 1: General requirements |
| | Standard for Inverters, Converters, Controllers and Interconnection System Equipment for Use With Distributed Energy Resources for Distributed Resources | | IEEE Standard for Interconnecting DR with EP | | Recommendations For The Connection Of Generating Plant To The Distribution Systems Of Licensed Distribution Network Operators (UK) | | Other interconnect standards as may be required |
Seismic and Enclosure Integrity | | Degrees of Protection Provided by Enclosures (IP Code) | | IEEE Recommended Practice for Seismic Design of Substations |
Electromagnetic Compatibility | FCC 47 CFR Part 15 subpart B class A |
Radio Frequency Devices (Federal Communications Commission, CFR) | | Industrial, Scientific and Medical (ISM) Radio-Frequency Equipment - Electromagnetic Disturbance Characteristics - Limits and Methods of Measurement | | Electromagnetic compatibility (EMC) - Part 6-2: Generic standards – Immunity standard for industrial environments | | Electromagnetic compatibility (EMC) - Part 6-4: Generic standards - Emission standard for industrial environments | | Electromagnetic compatibility (EMC) - Part 6-5: Generic standards - Immunity for equipment used in power station and substation environment | | Electromagnetic compatibility (EMC) - Part 6-7: Generic standards - Immunity requirements for equipment intended to perform functions in a safety-related system (functional safety) in industrial locations |
Environmental | | 2006/66/EC of the European Parliament and of the Council of 6 September 2006 on batteries and accumulators and waste batteries and accumulators and repealing Directive 91/157/EEC | | 2011/65/EU Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS) | | Proposition 65 Safe Drinking Water and Toxic Enforcement Act of 1986 | | Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products Order No. 32 (China RoHS II) | | Regulation (EC) No 1907/2006 of the European Parliament and of the Council of 18 December 2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) |
储能系统认证与验证
