概述
普通电子电器产品为了符合法律法规要求，一般都是送到试验室进行emc测试，但是，也有一些大型设备、固定式设备、管路很多、需要相应其它的特殊要求进行辅助才能进行相应测试，例如，需要大型锅炉蒸汽、水循环、各类试剂等。这时候就需要EMC现场测试，在企业现场进行EMC测试，这个时候就需要找一家拥有试验室EMC设备租赁服务的试验室，提供EMC外检服务。
标准
符合CNAS ISO 17025实验室要求、CISPR 16要求EMC仪器租赁，符合国家YY 0505-2012、GB\T 18268.1、GB 9254、GB17743、GB4343.1、GB4343.2等标准要求，提供仪器设备租赁服务。
YY0505-2012 医疗器械EMC测试项目
- 电源端子骚扰电压测量
- 辐射电磁骚扰测量
- 谐波电流
- 电压波动和闪烁
- 静电放电抗扰度
- 电快速瞬变脉冲群抗扰度
- 浪涌抗扰度
- 射频场感应的传导骚扰抗扰度
- 射频辐射
- 工频磁场
- 电源电压暂降、短时中断抗扰度
仪器清单
1 Equipment list1.1 Harmonics & Flicker| Harmonics & Flicker ☐ | | Equipment | Manufacturer | Model No. | Serial No. | Cal Until | | Harmonics analyzer with flicker meter | C.I. | PACS-1 | | 16 Jun, 2021 | | Power source | C.I. | 5001iX+CTS-400 | | 16 Jun, 2021 |
1.2 Disturbance Voltage| Disturbance Voltage ☐ | | Equipment | Manufacturer | Model No. | Serial No. | Cal Until | | EMI Test receiver | R&S | ESCI | | 16 Jun, 2021 | | Two-line v-network | R&S | ENV216 | | 03 Aug, 2021 | | Shielded Room | ETS•Lindgren | 8*4*3 | | 26 Jan, 2021 |
Remark: Measurement uncertainty: 2Uc（V）= 2.3dB 1.3 Disturbance Power| Disturbance Power ☐ | | Equipment | Manufacturer | Model No. | Serial No. | Cal Until | | Power Absorber Clamp | R&S | MDS21 | | 18 Jun, 2022 | | Shielding room | ETS•Lindgren | 8*4*3 | | 26 Jan, 2021 | | EMI Test receiver | R&S | ESCI | | 16 Jun, 2021 |
Remark: Measurement uncertainty: 2Uc（P）= 3.2dB 1.4 Radiated Electromagnetic Disturbances| Radiated Electromagnetic Disturbances ☐ | | Equipment | Manufacturer | Model No. | Serial No. | Cal Until | | EMI Test receiver | R&S | ESCI | | 16 Jun, 2021 | | Triple-Loop Antenna | Everfine | LLA-2 | | 16 Jun, 2022 | | Shielded Room | ETS•Lindgren | 8*4*3 | | 26 Jan, 2021 |
Remark: Measurement uncertainty: 2Uc（V）= 1.91 dB 1.5 Radiated Emission (30MHz – 1000MHz)| Radiated Emission (30MHz – 1000MHz) ☐ | | Equipment | Manufacturer | Model No. | Serial No. | Cal Until | | Semi-Anechoic chamber | ETS•Lindgren | FACT3 2.0 | | 28 Sep, 2021 | | EMI test receiver 9kHz to 26.5GHz | R&S | ESR26 | | 14 Jan, 2021 | | Trilog-Broadband Antenna | Schwarzbeck | VULB 9168 | | 18 Jun, 2022 | | Pre Amplifier | HP | 8447F | | 14 Jan, 2021 |
Remark: Measurement uncertainty: 2Uc（V）= 3.35dB 1.6 Radiated Emission (1GHz – 18GHz)| Radiated Emission (1GHz – 18GHz) ☐ | | Equipment | Manufacturer | Model No. | Serial No. | Cal Until | | Wideband Amplifier Super Ultra | Mini-circuits | ZVA-183-S+ | 469101134 | 14 Jan, 2021 | | Horn Antenna | A-INFOMW | JXTXLB-10180-N | J2031090612133 | 18 Jun, 2022 | | EMI test receiver 9kHz to 26.5GHz | R&S | ESR26 | 101257 | 14 Jan, 2021 | Full Anechoic
Chamber | ETS•Lindgren | FACT3 2.0 | CT09015 | 14 Oct, 2022 |
Remark: Measurement uncertainty: 2Uc（V）= 3.37dB 1.7 Induced Current Density| Induced Current Density ☐ | | Equipment | Manufacturer | Model No. | Serial No. | Cal Until | | EMI Test receiver | R&S | ESCI | | 16 Jun, 2021 | | Two-line v-network | R&S | ENV216 | | 03 Aug, 2021 | | Shielded Room | ETS•Lindgren | 8*4*3 | | 26 Jan, 2021 | | EN 62493 test -head | Coemc | VDH1201 | | 16 Jun, 2022 |
Remark: Measurement uncertainty: 1.23dB (k=2, σ=95%) 1.8 Radiated Susceptibility| Radiated Susceptibility ☐ | | Equipment | Manufacturer | Model No. | Serial No. | Cal Until | | 9k-1.1GHz signal generator | R&S | SML01 | | 14 Jan, 2021 | | RF power Amplifier | rflight | NTWPA-00810150E | | 14 Jan, 2021 | | Biconilog Antenna | ETS•Lindgren | 3142D | | 02 Jul, 2022 | Full Anechoic
Chamber | ETS•Lindgren | FACT3 2.0 | | 28 Sep, 2021 |
1.9 Conducted Susceptibility (150 kHz-230 MHz)| Conducted Susceptibility(150 kHz-230 MHz) ☐ | | Equipment | Manufacturer | Model No. | Serial No. | Cal Until | | 9k-1.1GHz signal generator | R&S | SML01 | | 14 Jan, 2021 | 150k-230MHz
30W amplifier | Schaffner | CBA9425 | | 14 Jan, 2021 | | CDN | Schaffner | CDN M016 | | 14 Jan, 2021 | | Electromagnetism clamp | Schaffner | KEM Z801C | | 14 Jan, 2021 | | 6dB/50W attenuation | Schaffner | ATN6050 | | 14 Jan, 2021 |
1.10 Electrical Fast Transient (EFT)| Electrical Fast Transient (EFT) ☐ | | Equipment | Manufacturer | Model No. | Serial No. | Cal Until | EMC Immunity
Test System | Thermo Fisher
Scientific | EMC Pro
Plus | | 14 Jan, 2021 | | Capacitor clamp | Keytek | Pro-CCL+Pro-CCLC | | 14 Jan, 2021 |
1.11 Surge| Surge ☐ | | Equipment | Manufacturer | Model No. | Serial No. | Cal Until | EMC Immunity
Test System | Thermo Fisher
Scientific | EMC Pro
Plus | | 14 Jan, 2021 |
1.12 Voltage dips and Interruption| Voltage dips and Interruption ☐ | | Equipment | Manufacturer | Model No. | Serial No. | Cal Until | EMC Immunity
Test System | Thermo Fisher
Scientific | EMC Pro
Plus | | 14 Jan, 2021 |
1.13 Electrostatic Discharge| Electrostatic Discharge ☐ | | Equipment | Manufacturer | Model No. | Serial No. | Cal Until | | Electrostatic Discharge Generator | 3ctest | ESD-30G | | 18 Jun, 2021 |
1.14 Click| Click ☐ | | Equipment | Manufacturer | Model No. | Serial No. | Cal Until | | EMI test receiver 9kHz to 26.5GHz | R&S | ESR26 | | 14 Jan, 2021 | | Two-line v-network | R&S | ENV216 | | 03 Aug, 2021 | | Shielded Room | ETS•Lindgren | 8*4*3 | | 26 Jan, 2021 |
Remark: Measurement uncertainty: 2Uc（V）= 2.3dB
曾工拥有丰富的EMC外检经验

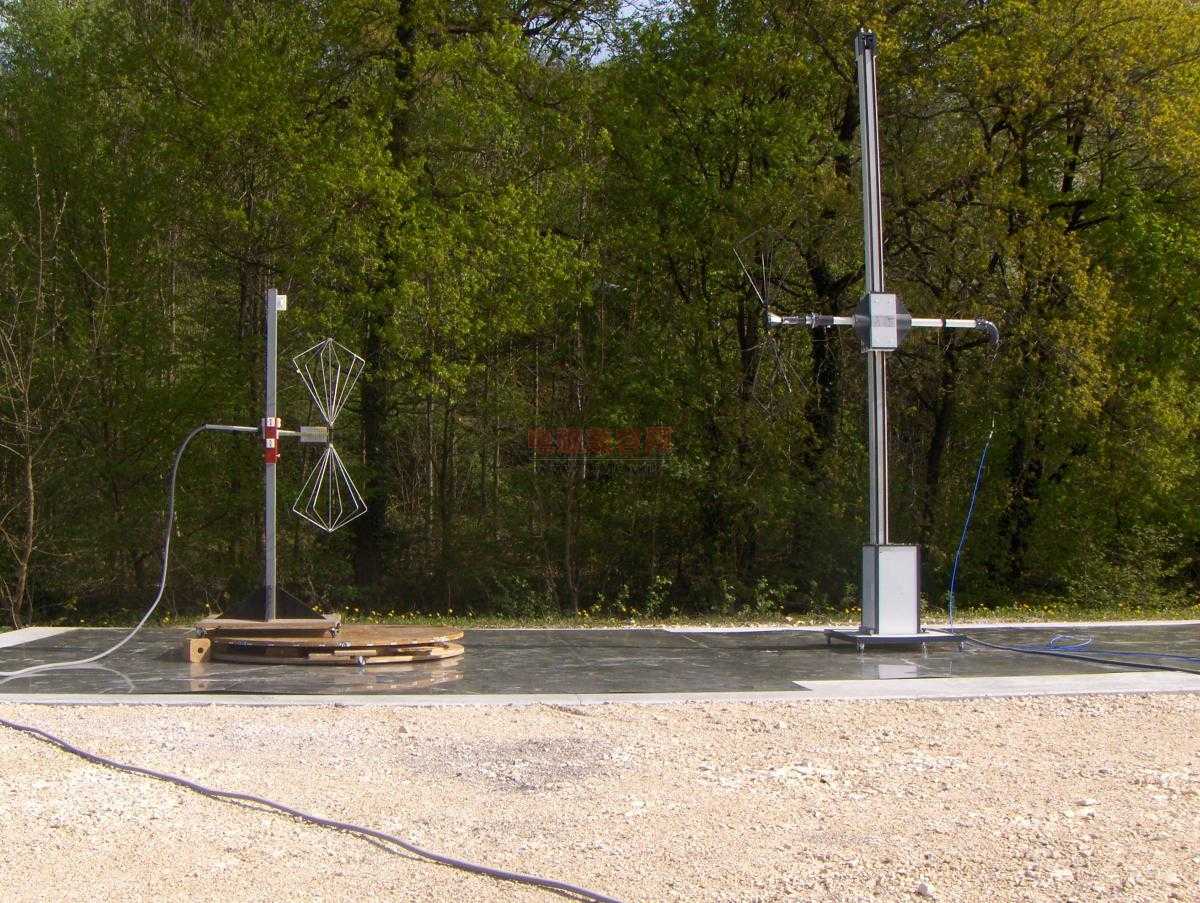

EMC现场测试
EMC整改
如果找到一家可靠的的EMC外检服务机构？- 仪器设备是否符合CISPR16的标准要求，是否有校准？
- EMC工程师是否有10年以上工作经验？
- EMC工程师是否有理解标准，熟悉EMC设备仪器操作，梳理数据整理报告的能力？
- EMC工程师是否有现场EMC不合格，有整改的能力，因为时间有限，如果现场没有拥有解决问题的能力，那么就会导致周期延长。
- EMC工程师是否有外检测试的经验，因为外场拥有复杂的电磁环境，必须拥有丰富的外检经验，会灵活排除外界环境干扰，精准定位产品的干扰，这样才能测试精准，符合法律法规的标准要求。
- EMC服务机构能否有对接例如国家试验室机构的经验，这样也会影响项目的执行，甚至导致重测等。
曾工拥有15年以上EMC从业经验，对EMC测试、整改、认证，均有丰富的经验。我们拥有全球顶级的EMC仪器设备，完全符合标准的要求。同样，我们不仅仅有测试能力，我们更有不合格的EMC整改能力，能为客户提供一站式的保姆式服务，免除您的后顾之忧。
欢迎来电咨询 139 2899 3907
|
